snoboy Posted October 17, 2003 Posted October 17, 2003 So, let's start a little database of mounting templates for backcountry bindings. Scans of originals are good idea, and if there are no dimensions on them, then put a ruler or something in the pic to allow people to get them printed at the right scale. edit: Beck had a good point, that the dimesions may not be accurate if you print these out. Two options to work around that. 1) Manipulate in image software, until all printed dimensions match those on the diagram. May or may not end up accurate. 2) Draw you own template using these dimensions, and the original as a guide. Always check against your binding before drilling. /edit Unfortunately there is no *freshiezone* specific gallery in the photo area yet, so if you can't host the photos your self, PM me and I will help you find a spot. Here's the G3 Targa to get us started: Quote

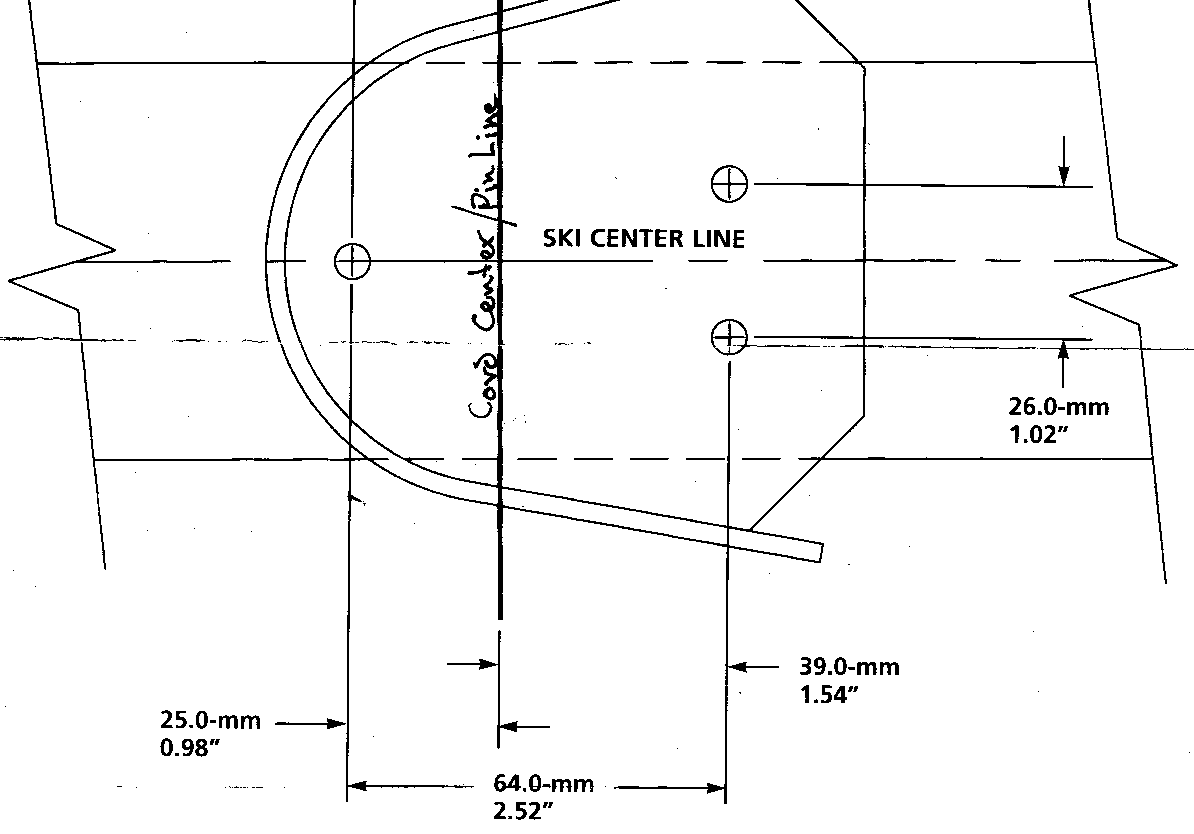

snoboy Posted October 17, 2003 Author Posted October 17, 2003 Next! Riva2, should be good for any three hole mount. Quote
snoboy Posted October 19, 2003 Author Posted October 19, 2003 G3 15 mm shim, for mounting Superloops, and three hole bindings. Quote
snoboy Posted October 19, 2003 Author Posted October 19, 2003 Dynafit AT binding... [edit] This is from the wildsnow.com Dynafit FAQ: According to Life-Link, the actual physical hole dimensions of the binding are: On the toe piece, the 4 hole pattern is 30mm X 26.5mm and the front hole is 18mm. On the heel piece, the hole pattern is 32mm on the front holes, 36mm on the rear holes and 53mm between front and rear holes. If necessary, verify all with calipers. Quote
snoboy Posted October 26, 2003 Author Posted October 26, 2003 I moved the discussion of Dynafit mounting out of this thread to here. I would like to keep this thread just templates. Any discussion about particular bindings can be in it's own thread. Quote
snoboy Posted November 7, 2003 Author Posted November 7, 2003 Rainey has an .pdf of his Hammerhead mounting template here. [edit]I added the .pdf as an attachment, because things might change at RD, now that Russell has sold the company. So people... where are the other templates you promised? 270388-HH_Template.pdf Quote
snoboy Posted September 2, 2004 Author Posted September 2, 2004 (edited) Got this .pdf that's attached from the 7TM website. 389035-7tmholepattern.pdf Edited February 7, 2005 by snoboy Quote
snoboy Posted December 7, 2004 Author Posted December 7, 2004 Here is a new link to the Hammerhead template, unfortunately it's got no dimensions on it. Quote
snoboy Posted December 13, 2004 Author Posted December 13, 2004 Here's a nice one attached as .pdf, from !ski on telemarktips.com It's for the G3, K2, BD, Bomber, etc 4-hole... 422162-K2template.pdf Quote
snoboy Posted February 7, 2005 Author Posted February 7, 2005 One of the Telelemarktips members is starting his own repository of templates. You can find it here. 435803-7tmholepattern.pdf Quote
snoboy Posted February 13, 2005 Author Posted February 13, 2005 Linken tele binding attached as .pdf 437483-monteringsmal.pdf Quote
snoboy Posted November 28, 2012 Author Posted November 28, 2012 I've decided to drop this from the stickys. Hope that's not too controversial! There is another version of this thread over at TGR. Quote
