Biners and Bolt Hangars


Thinker

Recommended Posts

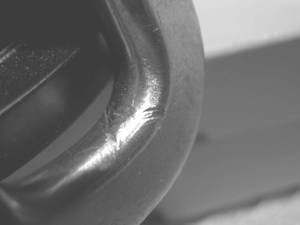

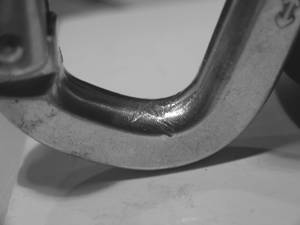

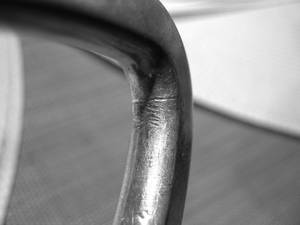

I was fondling my rack Sunday after an outing on Total Soul and found a biner with some sharp grooves gouged in it, presumably by bolt hangars, some of which were sharp enough to damage a rope. A closer inspection of my rack showed 7 biners with enough damage that I wanted take a small jeweler's file to....which I did. The photos below were taken after a small amount of filing...kind of an afterthought.



My questions are:

1. Is there anything else that could cause such damage?

2. How many of you (other than sprot climbers) have biners dedicated to bolts? (i.e. once you clip them to a bolt you'll never clip them to a rope or sling.)

3. How long has it been since you've fondled (inspected) YOUR biners?













Link to comment
Share on other sites

  • Replies 25
  • Created
  • Last Reply

Top Posters In This Topic

IF it's a big groove get a new one and - throw away any suspect gear.



If you think that's suspect climb on edelweiss ropes. Just kidding.



I dont know dude- I bet I have some markings like those.



I dont think I have replaced most of my shit in at least 5 years. I have some as old as 9 years.



Filing the shit down is probably a good idea.



I usually have more worries than that but not being elitist since I leave biners around once in a while so my rack rotates but not a lot.



Maybe the best spot for this is a climbing magazine. My guess is that they will pan to the manufactuer with the comments like buy new gear.



For me if I see weird shit I throw it away. But those look pretty miniscule to me- an opinion that you may disagree with.



-RB

Link to comment
Share on other sites

Yeah and fiddle with that jammed little cam while yer at it. Story:slight finger locked off, found the perfect cam on thinker's rack to get in first try. Pulled the trigger and the thing went boing and pretty much folded up on itself??? Tried a few more times and no way. Tried another piece,wrong fit and nothing else. Had to suck it up and go. It's all good and made it interesting.

Link to comment
Share on other sites

The grooves are really quite small, and the only ones I really worry about are the ones with sharp edges or snags that could damage nylon fibers. I've just touched them up enough with a file that so they're not sharp.



LeeJams gunned the 10b sections of Total Soul Sunday. It was a pleasure to watch after seeing him on his very first rock climbs just a few short years ago.



Anyone else have problems with the trigger wires slipping thru the trigger and becoming 'unequalized' on Metolius TCUs ? My yellow one does it at the worst times, as Lee found out.

Link to comment
Share on other sites

erik said:

i have sport spefic draws.



and i fondle all my gear all the time, as i have no friends!



good question!?!?! i wonder what does cause that? are you whipping on them?



It looks like hanger gouges...definitely caused by metal on metal...I wouldn't sweat them, but as Ray said, if you're even a little concerned, pitch 'em for peace of mind...biners are cheap

Link to comment
Share on other sites

Thinker said:

I really don't have any worries about the biners after I file the burrs off. Just wondering if anyone else ever sees the same thing on their biners, and if anyone goes so far as to have dedicated biners for bolt hangars...





i saw some discussion about this with some cheap home made hangars in spain damaging bolts, in a british climbing mag last year



i suggest you sue whoever bolted the route for using substandard hardware and endangering your life hahaha.gif

Link to comment
Share on other sites

Thinker said:

I really don't have any worries about the biners after I file the burrs off. Just wondering if anyone else ever sees the same thing on their biners, and if anyone goes so far as to have dedicated biners for bolt hangars...

yes. and yes. i posted that shit already fool.

Link to comment
Share on other sites

lummox said:

Thinker said:

I really don't have any worries about the biners after I file the burrs off. Just wondering if anyone else ever sees the same thing on their biners, and if anyone goes so far as to have dedicated biners for bolt hangars...

yes. and yes. i posted that shit already fool.



Thanks for contributing, Lummox. If this were the Spray section I'd say you and your sproty dogbone quick draws don't really count. But since it's not, I won't. bigdrink.gif

Link to comment
Share on other sites

Couple years ago DFA replaced all his draws due to similar wear. Most of the top biners had gouges ranging in severity from about what Thinker is showing to rather disconcerting rectangular trenches which were as deep as or deeper than the radius on the bottom of the biner stock. Similar wear on the bent gates, but instead it was big round grooves from rope running over them. When you've worn a third of the way through something like a BD Quicksilver, y'ain't got much aluminum left to keep you from forcefully interacting with terra firma.



DFA always clips his draws the same way (i.e. one end bolts, one end rope), mostly 'cause there's wiregates on the rope end (used to be bent gates) and straight gates on the bolt end. But due to the hanger-induced chunkage Thinker is discussing, the Doctor wouldn't clip the rope thru the bolt end (depending on the severity of the burrs).



The proverbial dos centavos.

Link to comment
Share on other sites

I have dedicated draws as well and always clip the same biner to hanger. It's always a good idea to inspect your biners for those grove marks as once in a while ya end up clipping slings to extend. I like to use emery cloth instead of a file since it conforms nice to the radius and doesn't load up your file. A good bur will shred soft goods. That being said, last year I bailed off a route in a down pour. The rope picked up lots of grit in the rain and acted like 80 grit sand paper on my rap biner. It put a rope sized groove into the biner. pitty.gif





Link to comment
Share on other sites

chucK said:

How often do you guys replace your rap/belay biners? Those things seem to get a groove worn in 'em fairly quickly.



depends how clean your rope is. i replace as soon as i get two fairly pronounced grooves. when i can run my fingers over and feel it pretty well. that is when i get kinda iffyon em.

Link to comment
Share on other sites

babnik said:

chucK said:

How often do you guys replace your rap/belay biners? Those things seem to get a groove worn in 'em fairly quickly.



depends how clean your rope is. i replace as soon as i get two fairly pronounced grooves. when i can run my fingers over and feel it pretty well. that is when i get kinda iffyon em.



Ya depends on how clean your rope is. When I can see/feel a groove it becomes suspect and gets tossed

Link to comment
Share on other sites
